Intent Webhook Integration

Need your DealDroid bot to trigger real-world actions when customers reach key moments? Like generating a payment link when someone’s ready to buy, or updating your CRM when they share their contact info? Intent Webhooks let you connect your bot to any external system — automatically triggering actions based on what your AI detects in the conversation.

---

What Can You Do With Intent Webhooks?

Intent Webhooks enable powerful automation by connecting your bot to external systems:

• 💳 Generate payment links — Create unique payment URLs when customers are ready to buy
• 📊 Update CRM systems — Sync customer data and conversation insights automatically
• 📦 Process orders — Trigger fulfillment workflows in your backend systems
• 🔔 Send notifications — Alert your team via Slack, email, or other channels
• 🔗 Connect any API — Integrate with any third-party service that accepts webhooks

The magic: This happens automatically when your AI detects specific customer intents — no manual work required!

---

Prerequisites

Before setting up Intent Webhooks, make sure you understand:

1. How Intents Work — Read the Add Intents guide to learn how your AI detects customer intentions
2. Basic API concepts — You’ll need to create a webhook endpoint that can receive POST requests
3. Your integration goals — Know what external system you want to connect and what data you need to exchange

Important: Intent Webhooks are configured within each Intent. First create or edit an intent, then configure the webhook settings at the bottom of the intent configuration page.

---

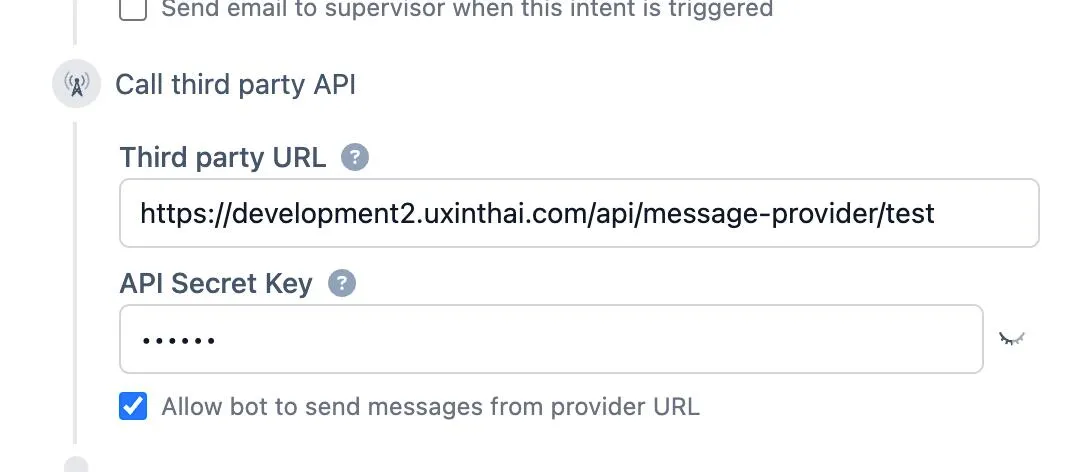

How to Access Intent Webhook Settings

To configure webhooks for an intent:

1. Log in to your DealDroid dashboard
2. Navigate to Tuning → Intents from the left sidebar
3. Click on an existing intent or create a new one
4. Scroll to the bottom of the intent configuration page
5. Find the “Call third party API” section

This is where you’ll configure how DealDroid communicates with your external system.

---

Configuration Fields Explained

Third party URL

This is the public URL of your webhook endpoint that will receive POST requests from DealDroid when this intent is triggered.

Example: https://your-server.com/api/intent-handler

Requirements:

• Must be publicly accessible (DealDroid needs to reach it from the internet)
• Must use HTTPS (HTTP is not supported for security reasons)
• Should respond within 5 seconds to avoid timeouts
• Must accept POST requests with JSON body

Tips:

• Use a dedicated endpoint for each intent if you need different logic
• Or use a single endpoint and handle different intents based on the payload
• Include versioning in your URL (e.g., /api/v1/intent-handler) for future flexibility

---

API Secret Key

A unique secret token that DealDroid will include with every request to your endpoint. This lets you verify that requests are genuinely from your DealDroid bot and not from unauthorized sources.

Example: your_secure_secret_key_2024

Best practices:

• Use a long, random string (at least 32 characters recommended)
• Store it securely as an environment variable on your server
• Never commit it to version control or expose it in client-side code
• Rotate it periodically for security
• Can be left blank if your endpoint doesn’t require authentication (not recommended for production)

Security note: Always validate this secret on your server before processing requests. If the secret doesn’t match, reject the request with a 403 Forbidden response.

---

Allow bot to send messages from provider URL

When checked, this enables two-way communication between DealDroid and your system:

1. DealDroid → Your System: When the intent triggers, DealDroid sends customer data to your URL
2. Your System → DealDroid: Your endpoint can respond with messages that DealDroid will send to the customer
3. Your System → DealDroid (Later): Your system can also send messages at any time using the webhook endpoint

Use cases:

• ✅ Enabled: Your system generates dynamic responses (payment links, order confirmations, personalized offers)
• ❌ Disabled: You only want to log data or trigger backend processes without responding to customers

Tip: Leave this checked for most use cases. It gives you maximum flexibility to respond to customers dynamically.

---

How Intent Webhooks Work

Here’s the complete flow when a customer triggers an intent with webhook integration:

1. Customer sends message — “I want to buy 2 bags of dog food”
2. AI analyzes intent — Detects “Purchase” intent
3. DealDroid sends webhook — POST request to your configured URL with complete context
4. Your system processes — Generates payment link, creates order, updates CRM, etc.
5. Your system responds — Returns messages to send to the customer
6. DealDroid delivers — Sends your messages to the customer seamlessly
7. Later: Your system can send more messages — Use the webhook endpoint to send updates (payment confirmation, shipping updates, etc.)

This creates a seamless experience where external systems power the conversation without customers knowing the complexity behind the scenes.

---

Request Format: DealDroid → Your System

When an intent triggers, DealDroid sends a POST request to your configured URL with comprehensive conversation context.

TypeScript Type Definition

type IntentWebhookRequest = {
  // Message tracking
  mid: string;
  customer_id: string;

  // Intent information
  intent: string;

  // Parsed customer address
  address_parsing: {
    street_address: string;
    village_or_project: string;
    subdistrict: string;
    district: string;
    city: string;
    state: string;
    postal_code: string;
    country: string;
  };

  // Payment preference
  payment_method:
    | "bank_transfer"
    | "cash_on_delivery"
    | "credit_card"
    | "other";

  // Shopping cart details
  shopping_cart: {
    products: Array<{
      code: string;
      name: string;
      price: number;
      count: number;
      total: number;
      available: boolean;
    }>;
    shippingFee: string;
    grandTotal: string;
    unavailableCount: number;
  };

  // Contact information
  contact_info: {
    name: string;
    phone: string;
    email: string;
    address: string;
    city: string;
    zipcode: string;
    language: string;
    languageName: string;
  };

  // Security
  secret: string; // Your configured API Secret Key

  // Additional context
  folder: string;
  e: string;
  product_type: string;
};

Field Reference

Field	Type	Description
mid	string	Unique message identifier for tracking
customer_id	string	Unique customer identifier (use this for webhook callbacks)
intent	string	The name of the triggered intent
address_parsing	object	AI-parsed delivery address components
payment_method	string	Customer’s preferred payment method
shopping_cart	object	Complete cart with products, totals, and availability
contact_info	object	Customer contact details collected by the AI
secret	string	Your API Secret Key for validation
folder	string	Internal organization identifier
e	string	Environment/workspace identifier
product_type	string	Type of products in conversation

---

Webhook Integration: Your System → DealDroid

Beyond responding to intent triggers, your system can send messages to customers at any time using DealDroid’s webhook endpoint. This is perfect for asynchronous updates like payment confirmations, shipping notifications, or status changes.

Webhook Endpoint

URL: https://app.dealdroid.net/api/provider/webhook/
Method: POST
Content-Type: application/json

Request Body

{
  customer_id: string;    // The customer_id from the intent webhook request
  messages: string[];     // Array of messages to send
}

Example: Payment Confirmation

{
  "customer_id": "b9d35283-131d-4c85-9d66-c43d830daec0",
  "messages": [
    "✅ Payment received! Thank you!",
    "📦 Your order is being prepared",
    "🚚 Expected delivery: 2-3 business days"
  ]
}

Example: Shipping Update

{
  "customer_id": "b9d35283-131d-4c85-9d66-c43d830daec0",
  "messages": [
    "🚚 Your order has been shipped!",
    "📦 Tracking number: TH789456123",
    "Track here: https://track.thailand-post.com/TH789456123"
  ]
}

Response

A successful message delivery will receive:

• Status Code: 200 OK
• Response Body: [OK]

---

Security & Best Practices

Always validate the secret key:

const validateSecret = (req, res, next) => {
  if (req.body.secret !== process.env.API_SECRET) {
    return res.status(403).json({ error: "Forbidden" });
  }
  next();
};

Key security practices:

• ✅ Use HTTPS only (never HTTP)
• ✅ Validate all input data before processing
• ✅ Respond within 5 seconds to avoid timeouts
• ✅ Store secrets in environment variables
• ✅ Log all requests for debugging

---

Troubleshooting

Issue	Solution
Webhook not triggering	Check intent is enabled, URL is correct, and “Call third party API” checked
403 Forbidden	Verify secret key matches exactly (check for spaces)
Timeout errors	Respond immediately, process heavy tasks in background
Messages not appearing	Ensure “Allow bot to send messages” is checked, response is array of strings
Invalid customer_id	Use exact customer_id from request, don’t modify it

---

FAQ

Question	Answer
Can one intent trigger multiple webhooks?	No, but your endpoint can trigger multiple downstream systems
What if my webhook returns an error?	DealDroid continues normally, but response won’t be delivered. Handle errors gracefully
How long do I have to respond?	Within 5 seconds. For longer processes, respond immediately and use async webhook for updates
Can I send images via webhook?	No, text only. Configure images in intent settings
Is there a rate limit?	Depends on your plan. Contact support for specifics
Can I test without real orders?	Yes! Use test endpoint or implement test mode

---

That’s It! 🎉

You’re now ready to connect your DealDroid bot to any external system!

Intent Webhooks unlock powerful automation possibilities — from generating payment links to integrating with your entire business infrastructure. With real-time intent detection and two-way communication, you can build sophisticated workflows that feel seamless to your customers.

Key takeaways:

• 🎯 Configure webhooks within each intent
• 🔒 Always validate the secret key
• ⚡ Respond quickly (under 5 seconds)
• 🔄 Use async webhooks for updates
• 📊 Log everything for debugging

Ready to build something amazing? Start with a simple payment link generator and expand from there!

Need help? We’re here to support you! 😊
